Customized Light Weight Carbon Fiber Tubes
Xinbo Composite specializes in different modulus carbon fiber tubes according to application，with surface of natural , polished matte , painted glossy , etc. Customized carbon fiber tubes can be UD or 3K weave , max length of carbon fiber tube is 6M . OD tolerance of carbon fiber tubes can be +/-0.05mm ~ +/-0.1mm .

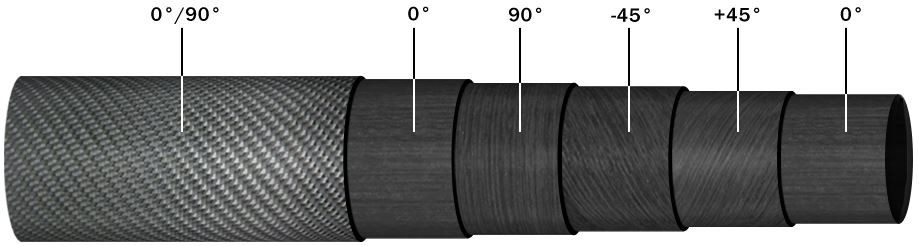

Fiber Lay-Up
We can design carbon fiber tube lay-up orientation according to per client's requirement .
Fiber lay-up can be as following :
0° Fibers maximize bending stiffness.
90° Fibers maximize crushing stiffness and generally assist in overall tube strength.
45° Fibers maximize torsional stiffness.
Manufacture Process
Roll wrapped carbon fiber tubes are manufactured using multiple layers of carbon fiber prepreg materials.
1. Wrapped onto a mandrel in multiple layers and angles
2. Externally pressurized with transparant PP tape
3. Heat cured to solidify
4. After curing, the solid composite is demoulded from the mandrel as a tube
Application of Carbon Fiber Tubes
Xinbo assists customers in developing and manufacturing products in carbon fiber , fiberglass and kevlar . Our products are widely used in areas of high-end industrial machinery , medical equipment , intelligent robot , security equipment , transportation , marine antenna , sporting goods , photography facilities , etc .
Delivery inspection
Before production dispatch , we measure each carbon fiber tube with calliper to make sure size is within order tolerance .
Delivery time
For carbon fiber tube sample , we can arrange shipment in 7 days ;
For mass production of regular sizes , delivery time is around 20-25 days .

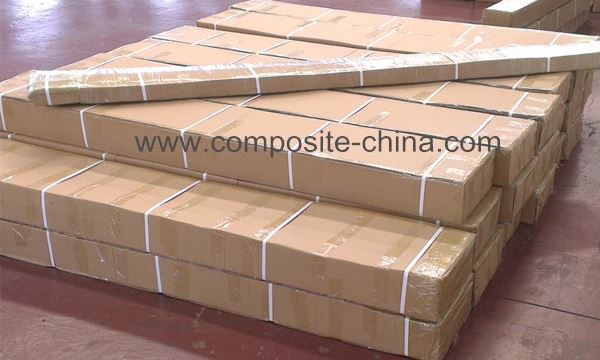

Packaging & Shipment
We wrap each carbon fiber tube with plastic bag/bubble bag . Each carton weighs less than 25kg .
For samples , we usually ship via DHL/UPS/Fedex ; For bulk order shipment , we suggest to choose air transportation or ocean shipment .
ISO 9001 Certificate
